Below is a complete list of materials for the framing of the tiny house. The floor framing is not included and is tracked separately. For information on the floor framing, click here.
The notes identify quantity and use of that particular item.
Main Floor Framing and Sheathing
| Date | Cost* | Details |
| 2016-08-07 | 405.14 | Purchases from Home Depot (84) 2" x 4" x 96" Stud (Frame) (2) 2" x 4" x 10' Boards (Frame) (4) 2" x 6" x 8' Boards (Window Headers) (25) 3/8" x 5" bolts (bolting walls to trailer) (8) 3/8" x 4" bolts (bolt frame corners together) (8) 3/8" x 6" bolts (bolt frame corners together) (41) 3/8" nuts (74) 3/8" washers (1) 5 LB Box of 8D 2 1/2" Nails (1) 5 LB Box of 12D 3 1/4" Nails |
| 2016-08-11 | 15.88 | Purchases from Home Depot (2) 1 LB Box 3 1/2" Construction Screws |
| 2016-08-13 | 121.32 | Purchases from Home Depot (2) 5 LB Box of 12D 3 1/4" Nails (1) 1 LB Box 3 1/2" Construction Screws (19) 2" x 4" x 8' Studs (Frame) (8) 2" x 6" x 8' Boards (Window Headers/Loft Beams) |
| 2016-08-19 | 150.05 | Purchases from Home Depot (1) 3/4" x 100' Metal Hanger Strap (for extra stability) (1) Can Spray Foam for Windows and Doors (5) 6" Carriage Bolts 3/8" (Loft Joists to Frame) (7) Cut Washers 3/8" (7) Hex Nuts 3/8" (2) 8" Carriage Bolts 3/8" (Loft Joists to Frame) (6) 2" x 6" x 8' Boards (Loft Beams) (1) Can Spray Foam for Gaps and Cracks (3) 23/32" x 4' x 8' Pine Plywood (Loft Floor) |
| 2016-08-19 | 318.38 | Purchases from Home Depot (14) 7/16″ 4′ x 8′ ZIP System® (1) 5 LB Box of 8D 2 3/8″ Coated Sinker Nails |

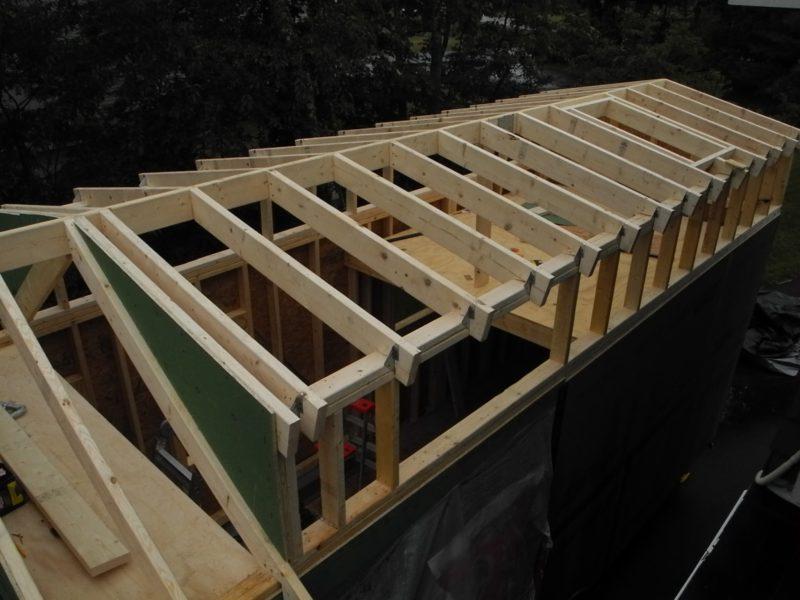

| 2016-08-27 | 203.28 | Purchases from Home Depot (10) 2" x 6" x 10' (roof framing) (1) 2" x 6" x 12 ' (roof support beam) (10) 2" x 6" x 8' (loft floor framing) (10) 72" x 3/8" threaded rods (additional support) (2) 1 LB 6D 1-7/8" Coated Sinker Nails (3) 2 packs Coupling for threaded rods (20) H1Z Hurricane Ties (roof frame) (2) 20GA steel tie plates (join roof support beams) (1) 5 LB 10D 3" Common Nails (10) 3/8" hex nuts (threaded rods) (13) 3/8" washers (threaded rods) |
| 2016-08-27 | 49.90 | Purchases from Home Depot (2) Zip System Stretch Tape |
| 2016-09-02 | 157.69 | Purchases from Home Depot (12) 2" x 6" x 10' (roof framing) (20) 2" x 4" x 8' (loft/roof framing) (2) 72" x 3/8" threaded rods (additional support) (1) 1 LB 1 3/8" Blued A/T Drywall Nails (1) 1LB 3" Construction Screws (2) 3/8" hex nuts (threaded rods) (2) 3/8" washers (threaded rods) |
| 2016-09-06 | 42.10 | Purchases from Home Depot (2) 7/16" 4' x 8' ZIP System® (loft wall Sheathing) |
| 2016-09-06 | 16.80 | Purchases from Home Depot (20) H1Z Hurricane Ties (roof frame) |
| 2016-09-07 | 7.26 | Purchases from Home Depot (1) 2" x 6" x 12' (roof framing) |
| 2016-09-07 | 270.70 | Purchases from Home Depot (10) 5/8″ 4′ x 8′ ZIP System® (roof sheathing) |
| 2016-09-16 | 40.90 | Purchases from Home Depot (2) 7/16" 4' x 8' ZIP System® (loft wall sheathing) |
| 2016-09-16 | 11.99 | Purchases from Ace Hardware (1) 5LB 3" 10D Common Nails |
| 2016-09-16 | 2.99 | Purchases from Ace Hardware (1) 1LB 2 3/8" 8D Nails (wall and roof sheathing) |
| 2017-07-21 | 2.95 | Purchases from Ace Hardware (4) 2 1/2" 3/8" Bolts, Nuts, Washers (utility closet) |
| Total | 1817.3300 |
*While tracking cost is important, the prices are reflecting costs at the time of purchase. Markets change and prices fluctuate frequently. Therefore, the prices should be used as an estimation for any personal project.
